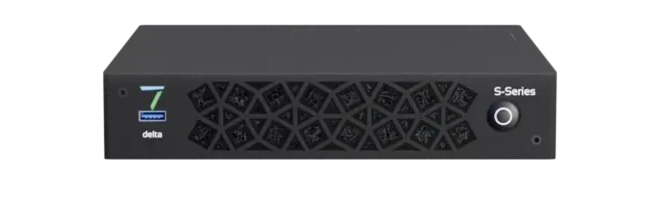

S-Series™ Ultra-compact Uncompressed 8K Media Server

Professional media playback from one of the smallest servers ever produced by 7thSense, delivering performance that feels impossible for its size. The S-Series™ is a compact 8K media server designed for frame-based uncompressed playback. Created for environments where space, power and noise must be kept low, the S-Series™ delivers performance typically associated with larger rack mounted platforms.

Uncompressed multi-channel playback

This compact device supports:

Up to 3 channels of 4K 10-bit 4:2:2 at 60 frames per secondUp to 4 channels of 4K 10-bit 4:2:2 at 30 frames per second

Up to 4 channels of 4K 8-bit 4:2:2 at 60 frames per second

Up to 4 channels of WUXGA 10-bit 4:4:4 at 60 frames per second

These capabilities suit projection mapping, LED pixel packing, theatre domes, exhibits and compact immersive environments.

Real-time engine ready

When supplied as hardware only, the S-Series™ can run generative engines including Unreal Engine®, Unity®, Notch®, or TouchDesigner®, supporting generative media workflows.

KEY FEATURES

  • Ultra-compact hardware
  • Certified to international electrical and emissions standards
  • Very low power consumption (65 watts typical, 82 watts max power draw)
  • Built-in warp and blend
  • Frame-based timeline driven playback
  • Playhead synchronisation across multiple S-Series™ and other 7thSense media servers
  • NDI remote preview for confidence monitoring
  • Video capture via NDI or USB devices
  • External control via TCP and UDP using ASCII protocol, macro sequence scripting, ArtNet control mapping and OSC control
  • Scalable in multiserver workflows where genlock isn’t required
  • Available as hardware only for use with generative engines
  • Layer Support:
  • -- Eight HD or WUXGA uncompressed layers per output
  • -- Two UHD or 4K uncompressed layers per output
  • -- Two NotchLC layers

APPLICATIONS

  • Media-based attractions and exhibits
  • Projection mapping
  • LED walls and architectural LED
  • Live events
  • Generative and interactive installations
  • Mixed real-time and playback environments
